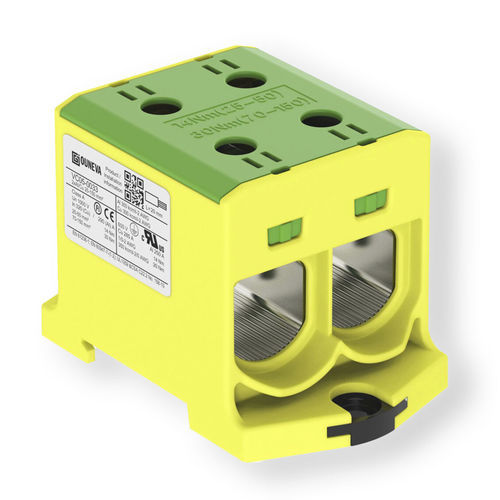

Power terminal block VC05-0033

DIN rail-mountedscrew connectioninsulated

Terminal blocks provide the electrical connection between two flexible or rigid conductors. They can be used to connect several conductors at a single connection point or to supply power to an electrical cabinet. Our tinned aluminium terminal blocks are compatible with aluminium and copper cables. Available in 3 colours (grey, blue, green/yellow), you will be able to distinguish between your various phases at a glance. Thanks to their compact format, these products fit neatly into a small footprint. They are easily installed on a DIN rail using a clip. Our self-extinguishing terminals meet the UL94-V0 standard, have UL approval and are IP 20 certified. An aluminium and copper terminal While most terminals on the market only accept aluminium or copper conductors, we have terminals that accept both materials. Designed in tinned aluminium, our terminal blocks accommodate both incoming and outgoing aluminium and copper cables. Connecting several cables per phase The double junction block enables you to connect two aluminium cables from the site and end up with a single cable inside your cabinet. For example, on a VC05-0042 terminal, two 6 to 95 mm² aluminium or copper cables are used. Output is via 1 or 2 x 6 to 95 mm² cables. Wide connection range Our terminal block has a very wide connection range. This is to facilitate the input and output of cables of different conductor (mm²).
