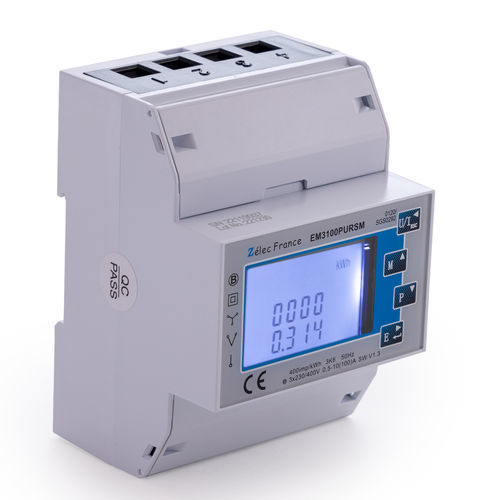

Three-phase electric energy meter EM3100PURSM

single-phaseDIN railRS-485

100 A 4 modules, Modbus RS485 MID 3 phase + N multimesurement direct energy meter Installed upstream of an electrical circuit, energy meters are used to identify and monitor an installation’s electricity consumption. Our wide range of products can be used for metering and measuring directly connected single-phase, three-phase or four-phase circuits of up to 100 A and up to 6000 A when connected via current transformers. The EM3100PURSM meter is an electrical measuring device operating on a 3 phase or 3 phase + N network with RS485 Modbus communication and two pulse outputs. It has been designed so that all the parameters of the electricity network can be read directly on PLC or a BMS. This direct connection meter provides metering up to 100 A. This product is MID certified. MID-certified product The MID directive (Measurement Instruments Directive, abbreviated to M.I.D) is a European directive concerning measuring instruments. Only electricity meters that comply with this directive may be used for billing electricity. This directive guarantees the accuracy of measurements by establishing uniform rules throughout the European Union. This is a guarantee of the accuracy and reliability of our meter range.
