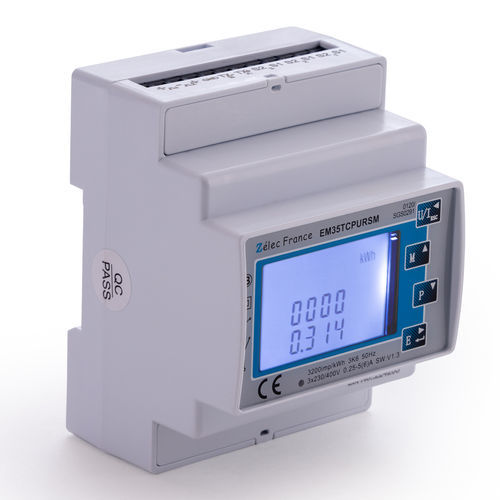

Three-phase electric energy meter EM35TCPURSM

DIN rail50 HzModbus

Installed upstream of an electrical circuit, energy meters are used to identify and monitor an installation’s electricity consumption. Our wide range of products can be used for metering and measuring directly connected single-phase, three-phase or four-phase circuits of up to 100 A and up to 6000 A when connected via current transformers. The EM35TCPURSM meter is an electrical measuring device operating on a tri-phase and four-phase network with RS485 Modbus communication and two pulse outputs. It has been designed to be able to read all the electrical parameters on the meter display. the Modbus communication allow also to monitoring all the electrical parameters on a PLC or BMS. This current transformer (CT)-connected meter provides metering from 5 to 6000 A. This product is MID certified. MID-certified product The MID directive (Measurement Instruments Directive, abbreviated to M.I.D) is a European directive concerning measuring instruments. Only electricity meters that comply with this directive may be used for billing electricity. This directive guarantees the accuracy of measurements by establishing uniform rules throughout the European Union. This is a guarantee of the accuracy and reliability of our meter range.
