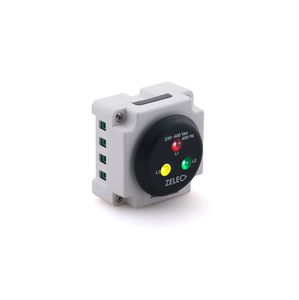

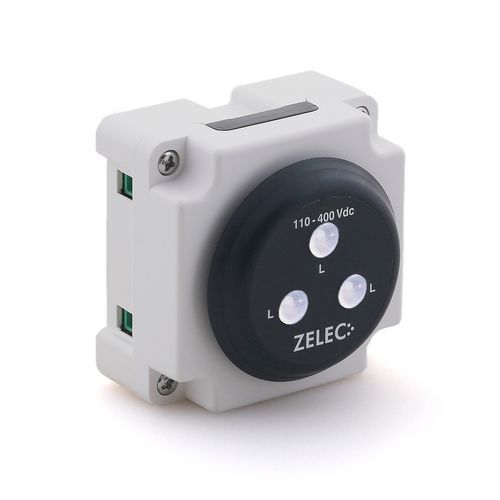

LED indicator light TRILDC5W

panel-mountsquare

The Trileds® range is the most complete solution on the market for indicating the presence of voltage on AC and DC networks. This indicator light is designed for installation in switchboards or electrical cabinets operating on a 400 Vdc network. System operation is indicated by three separate LEDs (L). To ensure user safety, the operating voltage is specified on the front of the product. The range is compatible with AC (3-phase or 4-phase) or DC electrical networks. It is also suitable for networks with high voltages (400 Vac, 690 Vac, 1000 Vac and 400 Vdc) or special frequency (400 Hz). Characteristics: - The round front panel of the sightglass is easily mounted on the cabinet door thanks to its standard 22.5 mm drilling diameter. - With its push-in terminal system, wiring is simple and tool-free with flexible or rigid cables. - The reduced depth of 31 mm allows door mounting even with faceplate. The width of the housing is identical to the size of the Trileds® Ø30.5 mm nut.
