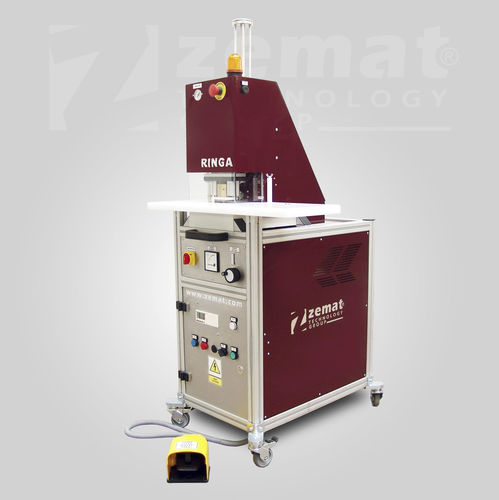

TIG welding machine RINGA

high-frequencyautomatic

RINGA GXM1P machine is integrated HF welder with automated pneumatic feeding/punching press for large volume welding of plastic eyelets onto various technical textiles. Compared to metal grommets, welded plastic eyelets will fuse together with the fabric and result in a joint that is significantly stronger and can withstand significantly higher pull forces. This is especially true when working in mesh materials. RINGA machine offers single side HF welding for PVC eyelets of various diameters e.g.: 11/27, 13/32, 15/37, 19/43mm (inside/outside) with customized electrodes. FEATURES: Universal usage for PVC, PET, PU High weld precision and efficiency Small footprint and great work ergonomics Easy action through pedal/toggle to reduce operator fatigue Energy efficient RF generator with smooth power regulation Protective fixed guard - working table HF shielded and filtered Outperforms metal grommets in flexibility and strength With HF welded eyelts no overlaping or hemming is required Durable in harsh environments. Will not rust and leave stains
