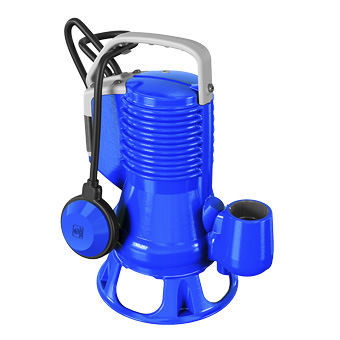

Submersible pump DG - blue seriesvortexfor wastewaterelectric
Add to favorites
Compare this product
Characteristics
- Technology
- vortex
- Fluid
- for wastewater
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary
- Domain
- for wastewater treatment
- Applications
- sewage, sump, dredging
- Material
- cast iron
- Fluid specification
- for solids-laden fluids
- Voltage
- 220 V, 240 V
- Other characteristics
- compact, with mechanical seals, small, portable, transportable, small-size, electromechanical
- Flow
401 l/min, 462 l/min
(105.93299 us gal/min, 122.04749 us gal/min)- Head
10.2 m, 11.6 m
(33'05" , 38'00" )- Power
Min.: 0.3 kW
(0.41 hp)Max.: 0.74 kW
(1.01 hp)
Description
Electromechanical assembly in EN-GJL-250 cast iron, for submerged operation, fitted with 2 (two) opposing mechanical seals in silicon carbide and alumina graphite in oil sump, and V-ring in direct contact with the liquid. Ecological dry motor. Pump body in single casting with motor casing.
