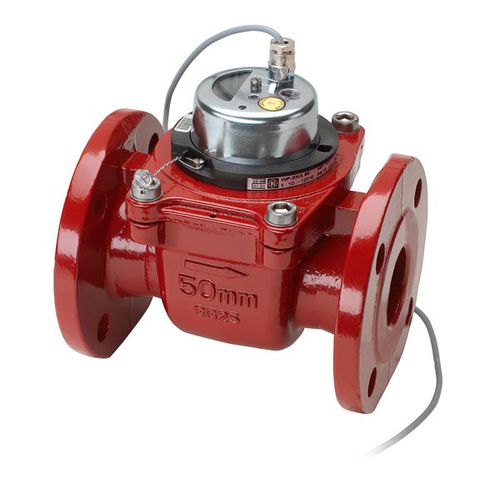

Volume flow sensor WP

for liquids

Robust WPH split volumetric flow sensor for municipal utilities companies, municipal water suppliers and industry. The cubic capacity and connection dimensions of the ZENNER Woltman WPH volumetric flow sensor are designed in conformity with DIN ISO 4064. The WPH is specially designed for horizontal or vertical installation and is characterised by a high load capacity, low pressure loss and a short face-to-face length. It is ideal for installation in heating circuits with an almost constant volumetric flow-rate (secondary heating circuit). A high-pressure version (PN 25 / PN 40) are also available on request. Reinforced bearing design High measurement stability Wide load range Reliable operating range to 120°C Suitable for multidata WR3 heat calculator Measuring Principle - Woltman parallel Register - Dry Dial Nominal Diameter DN (mm) - DN 50 DN 80 DN 100 DN 125 DN 150 DN 200 Length without connectors - 200 mm 225 mm 250 mm 300 mm 350 mm Temperature - Hot Water up to 120° C Housing Material - Cast Iron (GGG) Operating pressure (max.) - MAP 25/40 auf Anfrage Nominal Flow qp (Heat Meters) - qp = 15 qp = 25 qp = 40 qp = 60 qp = 100 qp = 150 qp = 250 Specified Units on Display - Cubic Meters (m³)
