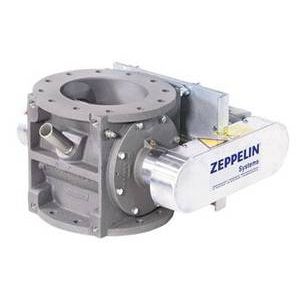

Pneumatic conveying rotary valve A1/AG11 series

round-flangeexplosion-proof

Applications The discharchge rotary feeder A1/AG11, series II is used for feeding and discharging of pelletized and powdered products into pneumatic suction and pressure conveying systems with differential pressures up to 1.0 bar (g). Design characteristics Sturdy, ribbed cast housing Vent port integrated in housing Flange connections according to DIN/ANSI/company standard Welded rotor, 10 chambers Sealing of shafts by means of radial lip seals Minimized rotor clearance resulting in minimum air leakage Pressure surge proof to 10 bar (g) Temperature range from -10 to +60°C, option with heating system from -52 to +250°C Options: - Quick cleaning - Alternative construction materials - Flame-proof with EC certificate (2014/34/EU) available for different types (ATEX) - Seal gas - Seal gas measuring device - Speed monitoring
