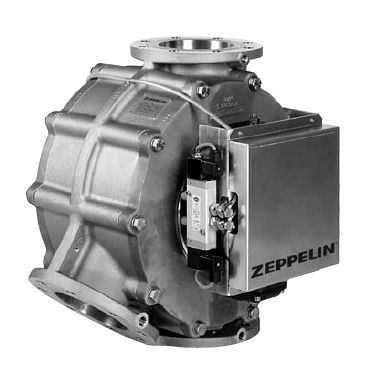

Diverter valve ZWR seriespneumatically-operateddistributionindustrial
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatically-operated
- Function
- diverter, distribution
- Applications
- industrial
- DN
Max.: 250 mm
(9.843 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 6 bar
(87 psi)Min.: -1 bar
(-14.5 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -52 °C
(-62 °F)
Description
Applications
The two-way diverter valve ZWR is used as a distribution or collection unit in pneumatic conveying systems, up to 6 bar (g), for powders and pellets in various industrial sectors.
Design characteristics
Inflatable self-adapting silicone sealing
Pressure tight from -1.0 to +6.0 bar (g) to the outside and the active leg
Temperature range from -10 to +80°C, option with heating system from -52 to +180°C
Maintenance-free, long life
Housing, side plates and rotor: cast aluminium
Product contacting surfaces: stainless steel
Flange connections acc. to DIN or ANSI
Diverter valve with electro-pneumatic controls, completely assembled and wired to terminal box
Sealing variations: silicone
Options:
- Lined with wear protected stainless steel pipes
- Explosion-proof electrical equipment according to ATEX 2014/34/EU
- Heated and isolated drive for low temperature applicationsications
