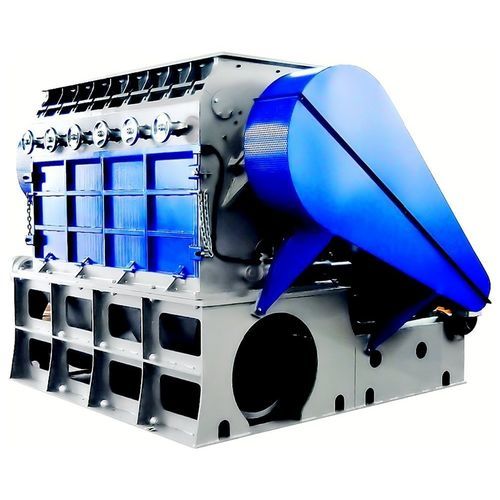

Rotor granulator GSH 1100

for plasticsfor plastic wastefor the plastics industry

• Knives are adjusted outside of the machine • Specially developed deflector wedge • Wide choice of rotors • Well thought out housing design • Strong Welded Steel construction • Oversized outboard bearings The GSH 1100 series of heavy duty granulators is a dependable machine engineered for demanding high throughput applications. The GSH 1100 series can be used to grind large thick walled parts down to a granule in one step, or be used as a second step granulator after a ZXS shredder to reach very high throughput rates. The large diameter rotors are available with a choice of 7, 9 or 11 rows of rotor knives. The V-cut design ensures a high quality granule with a low percentage of fines. For abrasive, contaminated or highly filled materials the machines can be equipped with special wear protections, such as hard facing of the rotor and housing and key parts manufactured from highly wear resistant steels. The heavy duty granulators of the GSH 1100 series offer a different rotor configuratons with widths ranging from 1200 mm to 2400 mm with a diameter of 1100 mm. The completely welded heavy steel construction is designed to withstand the most demanding and universal applications. Rotor bearings, knife mounts and rotor shaft are oversized.The standard V-cut creates a high quality regrind with a very low percentage of fines in the output material. The removable third stator blade is acting as a deflector wedge and allows the machine to be quickly adjusted to different application scenarios.Other standard features include easily replaceable wear plates in the cutting chamber as well as outboard bearings reducing the risk of contamination.
