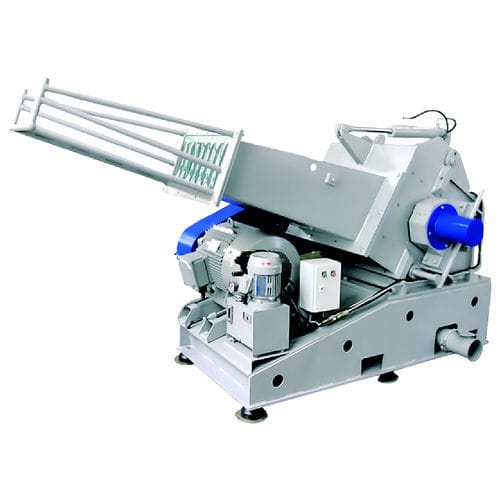

Rotor granulator GSP series

for plasticsfor wastefor the plastics industry

The Pipe and Profile Granulators of the GSP series are available in rotor widths of up to 1400mm and diameters ranging from 560 to 700 mm. The completely welded heavy steel cutting chamber is angled and fitted with an extended hopper to allow easy feeding of parts. The standard V-cut creates a high quality regrind with a very low percentage of fines in the output material. Other standard features include a hydraulically opened hopper as well as outboard bearings reducing the risk of contamination. • Knives are adjusted outside of the machine • Specially developed deflector wedge • Wide choice of rotors • Well thought out housing design • Strong Welded Steel construction • Oversized outboard bearings Conventional granulators have substantial problems handling long pipes and profiles. To feed large and bulky parts in most cases cavities or platforms are needed. Therefore ZERMA developed the GSP range. Thanks to the almost level feeding hopper, long pieces can be fed easily. While the machine is operating there is no risk of blocking, in case of congestion no more material will be accepted by the machine until the grinding chamber is empty and the machine will accept material again, and work continues.
