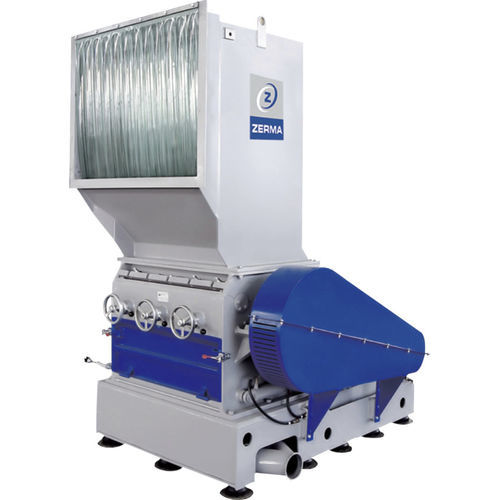

Rotor granulator GSH 350-500 series

for plasticsfor tiresfor plastic waste

The wide range of rotors and hopperstyles allow the GSH machines to betailored to almost every applicationin the plastic recycling field.The GSH350 and 500 granulators are mainly used as central granulators for inhouse recycling applications to process thick walled parts in one step oras a second step granulator after ashredder to reach higher throughputrates. For abrasive, contaminated orhighly filled materials the machinescan be equipped with special wearprotections, such as hard facing ofthe rotor and housing and key partsmanufactured from highly wear resistant steels. The heavy duty granulators of the GSH 350 and 500 series offer a wide array ofdifferent rotor designs with widths ranging from 500 mm to 1000 mm with adiameter of 350 and 500 mm respectively. The completely welded heavy steelconstruction is designed to to withstand the most demanding and universalapplications. Rotor bearings, knife mounts and rotor shaft are oversized. Thestandard V-cut creates a high quality regrind with a very low percentage offines in the output material. The removable third stator blade is acting as adeflector wedge and allows the machine to be quickly adjusted to differentapplication scenarios. Other standard features include easily replaceable wearplates in the cutting chamber as well as outboard bearings reducing the risk ofcontamination. • Edge trim • Window profiles • Fibers • Sheet • Copper and aluminium wires
