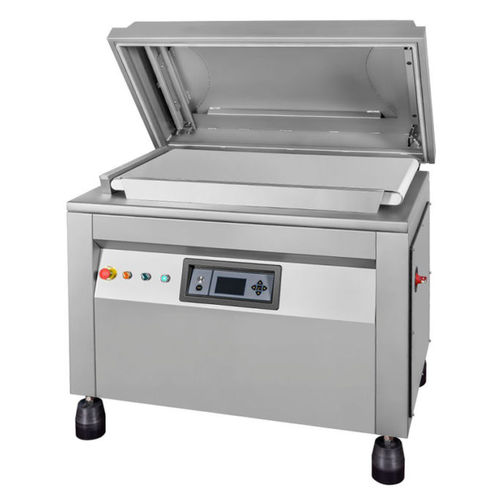

Manual packaging machine CV Series

vacuumbagfor the food industry

Industrial vacuum packaging machine. Vacuum packaging machine with possibility to automate the lid movement and the discharge of bags, tapes, other equipment or reception tables. Seal bars in various configurations available. Vacuum pump: Busch 100m3/h (optional 160m3h). Possibility to automate the lid movement and the discharge of bags, tapes, other equipment or reception tables. Technical Specifications • External dimensions: 1180 x 870 x 1250 mm • Chamber inner dimensions: 1054 x 630 x 180 mm • Seal bars: • a) 1 x 900 mm + 1 x 550 mm • b) 2 x 1000 mm + 1 x 490 mm • c) 2 x 900 + 1 x 550 mm • Vacuum pump: Busch 100 m3/h (160 m3/h) • Connection: 380V 3F (220V) • Power: 3’5 Kw Characteristics • Solid construction, simple and robust in stainless steel. • Control panel with 20 programs. • Progressive air inlet -softair-. • Sealing time control. • Easy maintenance. Opciones • Inert gas injection in bag. • Cut-off-seal. • 1-2-Cut-off-seal. • Automatic lid. • Internal conveyor belt for the product expulsion. • Synchronized side belt for product entry. • Extra height of chamber. • Installation for external vacuum pump. • 160m3 / h Busch vacuum pump (outside).
