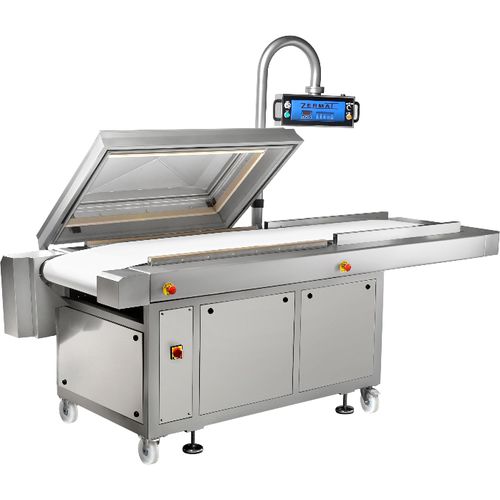

Automatic packaging machine ExtraLarge Series

vacuumbagfor the food industry

Machine designed to synchronize the discharge to automatic shrink tank and dryer. 100% automated vacuum packing machine. Automatic loading and unloading of bags. The operator has only to position the bags to be packed on the conveyor belt, the machine is responsible for finishing the process. Model adaptable to automated process lines with robotized bag loading. The operator has only to position the bags to be packed on the conveyor belt, the machine is responsible for finishing the process Technical data • External dimensions: 2850 x 1000 x 2015 mm • Chamber inner dimensions: 1000 x 550 x 220 mm • Seal bars 2 x 1000 mm ( + 1 x 550mm extraíble) • Vacuum Pump: Busch 250 m3/h • Connection: 380V – 3F (220V) • Power: 7’8 Kw • Weight: 780 Kg Features • Construction in stainless steel. • Control panel with 20 programs. • Progressive air inlet -softair-. • Vacuum control by sensor. • Sealing and cutting time control. Options • 1-2-Cut-off-seal. • 300 m3/h Busch vacuum pump. • 500m3/h Roots. • Installation for external vacuum pump • Bag punching. • Adjustable height of the tape. • Vacuum Experience. • Special adaptations.
