Aluminum coupling Single Flex 6A-A1C
flexiblefor foodhorizontal operation

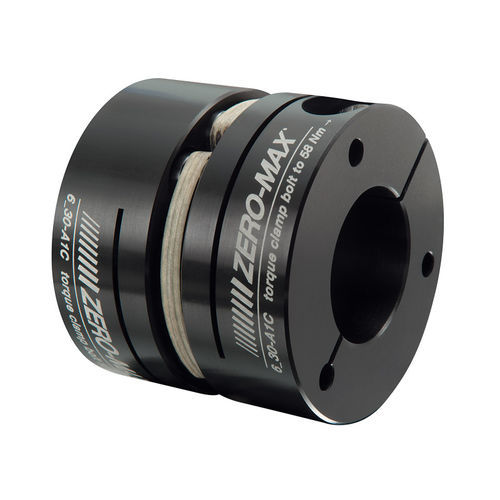

Aluminum coupling - Single Flex 6A-A1C - ZERO-MAX Europe - flexible / for food / horizontal operation
Aluminum coupling - Single Flex 6A-A1C - ZERO-MAX Europe - flexible / for food / horizontal operation
Aluminum coupling - Single Flex 6A-A1C - ZERO-MAX Europe - flexible / for food / horizontal operation - image - 2
Add to favorites
Compare this product

Go to the ZERO-MAX Europe website for more information

Characteristics

Type
flexible
Product applications
shaft, transmission, for paper machines, for the food industry, industrial, for printing machines, turntable, for excavators, for the aerospace industry, for food, for test benches, for pump, for medical devices, for blowers, for conveyor, for mechanical power transmission, clamp, engine, for the textile industry, for servo motors, for machines, for machine tools, for hydraulic motor, horizontal operation, gearbox, for mixers, flange, for agitators, for lathes, spindle, for spindles, turbine, for heavy loads, for milling spindle, pharmaceutical products, for coordinate measuring machines, for the packaging industry
Construction
compact, shaft-hub, metal bellows, aluminum, clamp
Performance
backlash-free, high-torque, maintenance-free, high-performance, high-speed, heavy-duty
Other characteristics
torque, misalignment correction, custom-made, compensating, with high torsional flexibility, dry, variable-speed, high-position
Installation system
flange, set screw
Torque

Min.: 20 Nm
(14.75124 ft.lb)

Max.: 282 Nm
(207.99253 ft.lb)

Rotational speed

Min.: 6,700 rpm
(42,097.34 rad.min-1)

Max.: 15,000 rpm
(94,247.78 rad.min-1)

Description

The Single Flex 6A-A1C version of the backlash-free composite disc coupling allows compensation of very high shaft misalignments in axial and angular direction. The compact aluminum clamping hub design of the single cardanic version offers very low weight and inertia. The innovative design of the spring pack guarantees high torsional stiffness with long service life in continuous operation. Especially for applications with a demanding requirement profile in terms of operating speed, load change (reversing operation) or repeatability, the clamping hub design 6A-A1C is an optimal choice. Compact aluminum design High torsional stiffness Electrically insulating and high chemical resistance Temperature range from -57 °C – 121 °C
