Spiral bevel gearbox right anglesolid-shaft0 - 0.1 Nm
Add to favorites
Compare this product
Characteristics
- Type
- spiral bevel
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft
- Torque
- 50 - 100 Nm, 20 - 50 Nm, 10 - 20 Nm, 5 - 10 Nm, 1 - 5 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm, 0.1 - 0.2 Nm, 0 - 0.1 Nm
- Mounting
- flange-mounted, shaft-mounted, foot-mounted
- Configuration
- compact, hygienic design, cast iron frame
- Number of stages
- double stage, three-stage
- Performance
- high-precision, high-efficiency, low-noise, high-performance, maintenance-free, low-backlash, high-speed, for heavy loads
- Applications
- for automation, for industrial applications, for electric motors, transmission, for lathes, for machinery, for the food industry, for servo motors, for the chemical industry, for rotary turntables, for twin-screw extruder, shaft, fan, for continuous operation, turbine, drive, for medical devices, for screw jack, for harsh environments, for hydraulic pumps, for milling applications, for test benches, for cooling towers, for material handling equipment, for pharmaceutical products, for robots, for textiles, for the sugar industry, for rolling mills, for actuators, for conveyors, escalator, winch, for heavy-duty applications, for conveyor, for mixers, for single-screw extruder, for machines, for vehicles, for electrical drives, for engine, for marine applications, for cutting machine, for agitators, for machine tools
- Other characteristics
- high-quality, aluminum, mounted, mechanical transmission, stainless steel, IP65
- Rotational speed
2,000 rpm
(12,566.37 rad.min-1)- Gear ratio
1 unit, 2 unit
Description

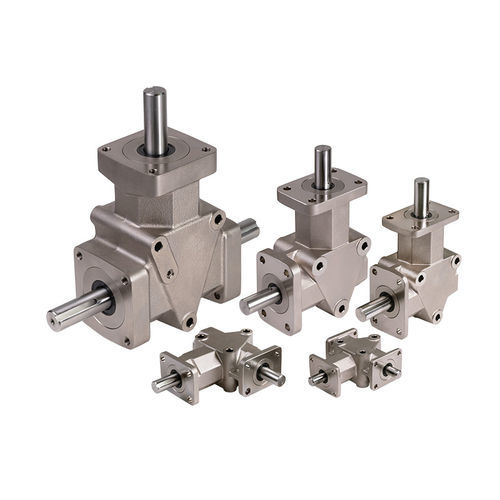

IP65 certified right-angle gearboxes offer a compact and efficient solution in applications that require protection against corrosion and contamination. IP65 right-angle gearboxes feature stainless steel shafts, shaft seals and a nickel-plated aluminum housing to meet demanding requirements. Using high quality H1 class food grade grease, IP65-Rated Crown gear right-angle gearboxes prove to be an ideal solution for applications in the food sector. An independent institute confirms that the right-angle gearboxes are certified to IP65.
2-way and 3-way versions available
Classification according to IP65
Operation in temperature range from -20 °C to +120 °C
Catalogs
No catalogs are available for this product.
See all of ZERO-MAX Europe‘s catalogs
