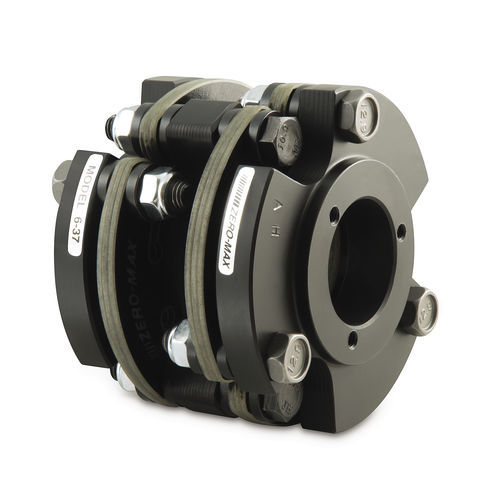

Double shaft coupling Double Flex 6P-QDflexiblefor spindlesfor printing machines
Add to favorites
Compare this product
Characteristics
- Type
- flexible
- Product applications
- engine, for shafts, transmission, for mechanical power transmission, for spindles, for conveyor, for servo motors, industrial, for machines, for mixers, for torque transducer, for printing machines, for the packaging industry, for machine tools, blower, gearbox, for the textile industry, for pump, generator
- Construction
- compact, metal bellows, shaft-hub, double, steel, taper sleeve, taper lock
- Performance
- zero-backlash, maintenance-free, high-torque, high-performance, high-speed, low noise and vibration, high load capacity, heavy-duty
- Other characteristics
- torque, misalignment correction, anti-vibration, compensating, with high torsional flexibility, keyless
- Installation system
- flange, shaft sleeve
- Torque
Min.: 181 Nm
(133.4987 ft.lb)Max.: 1,763 Nm
(1,300.3221 ft.lb)- Rotational speed
Min.: 3,300 rpm
(20,734.51 rad.min-1)Max.: 7,400 rpm
(46,495.57 rad.min-1)
Description
The double cardanic Double Flex 6P-QD version of the backlash-free composite disc coupling enables compensation of very high shaft misalignments in axial and parallel direction. The 6P-QD clamping bushing connection guarantees compliance with limited installation space requirements while maintaining high torque transmission.
Compact double-cardanic design in steel version
Simple and fast exchange of bushings possible
Compensation of large shaft misalignments (especially parallel and axial misalignment)
Very low reaction forces
High torsional stiffness
Nominal torque range from 181 to 1,763 Nm
Catalogs
No catalogs are available for this product.
See all of ZERO-MAX Europe‘s catalogs
