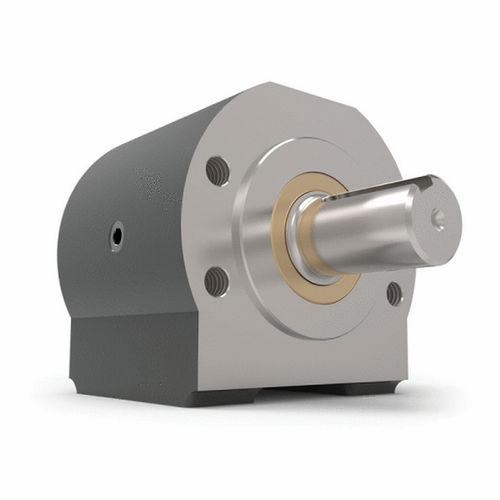

Hydraulic adapter 500 series

shaft

Our Model 500 Series of Overhung Load Adaptors (OHLA®) are designed for heavy-duty applications and provide radial and axial support to hydraulic motors and pumps. The 500-Series of SAE "A" mount OHLAs offer the following features: Accepts speeds up to 2300 RPM with proper lubrication (contact factory for higher speeds) Heavy-duty tapered roller bearings Input bore diameters of 1-1/4" keyed, 1"-6B spline, or 14 tooth 12/24 spline 4-bolt magneto mounting with optional 2-bolt mounting Our in-stock standard load adaptors are available for immediate shipment. Benefits of the 500-Series Overhung Load Adaptors The 500-Series is designed for shaft horizontal mounting and use standard grease lubrication. Contact factory for vertical mounting. Features of the 500-Series OHLA include: SAE A - 2-bolt or 4-bolt Magneto Mounting May be either Face-mounted or Foot-mounted Provides a sturdy mounting base for the motor or pump Supports radial and axial loads in extreme conditions Protects pump or motor shaft seal from harmful contaminants Reduces downtime and maintenance costs with reliable operation
