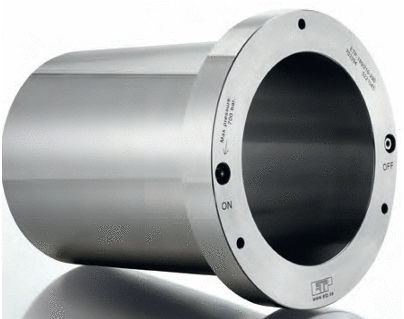

Positioning bushing ETP-HYDROPRESS®

connectionflangesteel

ETP® keyless bushings are the perfect locking devices for shaft-to-hub connections. Keyless connections are ideal for positioning and locking shaft components in a system and are a better solution than keyways and tapers that weaken or cause excess wear to shaft couplings. The ETP-HYDROPRESS® is a hydraulic joint which consists of a double-walled steel sleeve that expands to create a locking connection between shaft-to-hub connections. It features a flange design that is accessed by a grease pump for precise mounting of large components. Zero-Max offers a wide selection of high precision keyless shaft bushings and other components for motion control applications. Request a quote for ETP-HYDROPRESS keyless shaft bushings or contact us to learn more about our other keyless locking device options. ETP-HYDROPRESS Keyless Shaft Bushing Features ETP-HYDROPRESS keyless locking devices offer transmittable torque ranging from 2,139 to 19,913 ft-lb., depending on model selected. A hydraulic grease pump is all that is required for mounting. Additional features include: Variable transmittable torque or axial force by changing the mounting pressure Easy mounting/unmounting of large components in tight spaces Quick mounting. Only a grease pump is necessary for mounting Radial and axial connection is possible Fine adjustments of the hub can be made when mounting Good concentricity even after several mountings
