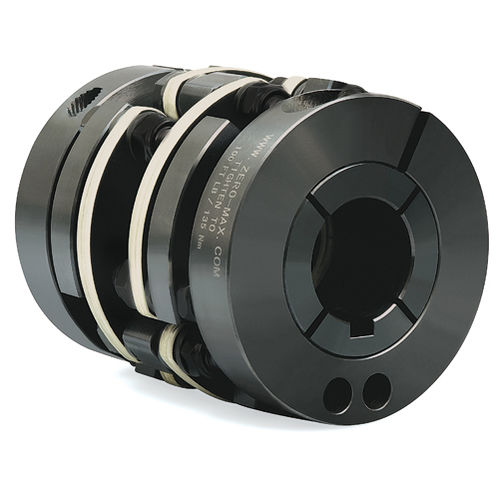

Shaft coupling 6P18Cflexibledisctransmission
Add to favorites
Compare this product
Characteristics
- Type
- flexible, disc
- Product applications
- shaft, transmission, for agitators, for the food industry, for robotics, for gears, for chemical applications, for rolling mills, for mixers, for the textile industry, blower, for wind turbine, for test benches, for coordinate measuring machines, for the packaging industry, for food, for the cement industry, for milling spindle, for the aerospace industry, for machine tools, for paper machines
- Construction
- compact, shaft-hub, double, with bore
- Performance
- zero-backlash, maintenance-free, high-performance, high-speed, low noise and vibration, high load capacity, heavy-duty
- Other characteristics
- misalignment correction, custom-made, compensating
- Torque
Max.: 1,164 Nm
(858.5223 ft.lb)Min.: 20 Nm
(14.7512 ft.lb)- Rotational speed
Max.: 12,000 rpm
(75,398.22 rad.min-1)Min.: 4,100 rpm
(25,761.06 rad.min-1)
Description
Steel Double Flex CD® Flexible Shaft Couplings provide a tough, robust, and durable design that is ideal for motion control applications requiring increased misalignment capacity compared to Zero Max’s Single Flex design . The Double Disc Composite CD Coupling’s high torsional stiffness, large misalignment capacity, and overall high-performance specifications are ideal for a range of standard and custom motion control applications. Constructed of high-quality and durable steel, these Double Flex Composite Disc Couplings offer the following advantages:
Zero Backlash
Torsionally Stiff
Excellent for Reversing Loads
Smooth Operating at High Speeds
Compact Design
Very Low Reaction Loads on shaft bearings due to misalignment
Clamp Style Hubs Available With or Without Keyways
