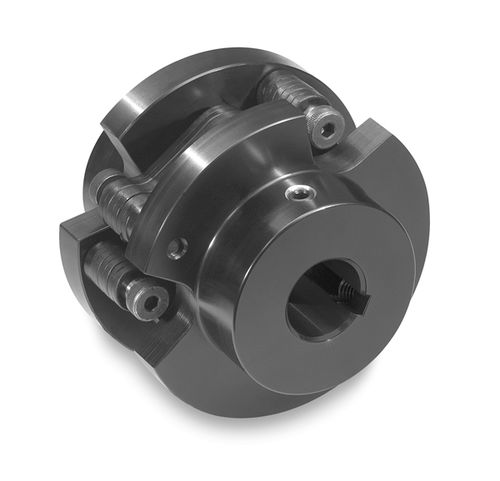

Flexible coupling Control-Flex®

transmissionshaftswith encoder

Bolted-style flexible couplings transfer rotation between two shafts in a precise manner. They also reduce wear and tear on bearings that can lead to costly maintenance and reduced life of your encoder. A bolted-style coupling allows for larger shaft misalignments than clamp style couplings and can handle larger shafts and higher torques. Using Control-Flex Couplings will help extend the operational life of your encoder and guarantee accuracy. Bolted-Style Flex Coupling Features The construction of a Control-Flex Coupling consists of two hubs (that attach to the shafts) and a center flex member. This flexible element is affixed to the hubs through shoulder bolts. The bolted-style hubs incorporate a keyway and setscrew shaft attachment. Flex discs are bolted for drop-out capability, for easy installation and maintenance. This unique design means the reaction forces due to transmission of torque and unavoidable shaft misalignments are considerably smaller when compared with common flexible couplings. Zero-Max bolted-style Control-Flex® Couplings were designed for encoder and instrumentation type applications. We offer couplings in four sizes that allow for maximum parallel shaft misalignments from 0.055” to 0.139,” maximum peak torques from 361 to 5,638 in-lbs., and maximum speeds from 2,500 to 6,300 RPM. Control-Flex® Bolted-Style Coupling Benefits Easy Installation Space Saving Electrically Isolating Flex Element Large bore range, small to large shaft diameters available in any given size Large Misalignment Capacity Ultra-Low Reaction Loads Zero Backlash Design Maintenance Free
