Electric adapter LMG-MAS

testsafetysingle-phase

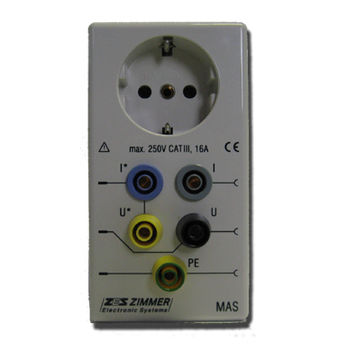

The LMG-MAS is a adaptor for measuring at single phase devices with Schuko inlet connector up to 16A. It was developed for the instrument series LMG. The supply is done by the fix mounted Schuko socket. The load is connected to the fixed mounted Schuko socket. With the LMG-MAS you can measure the voltage (jacks U and U*). The current is also accessible (from I* to I). These jacks have to be connected to the jacks of the measuring instrument. The internal wiring is done so that the load is measured with correct current. This wiring is suited perfectly for the measurement of stand-by power. An important point is the safety. The LMG-MAS is in compliance with IEC61010-1 and was designed for voltages up to 250V CAT III.
