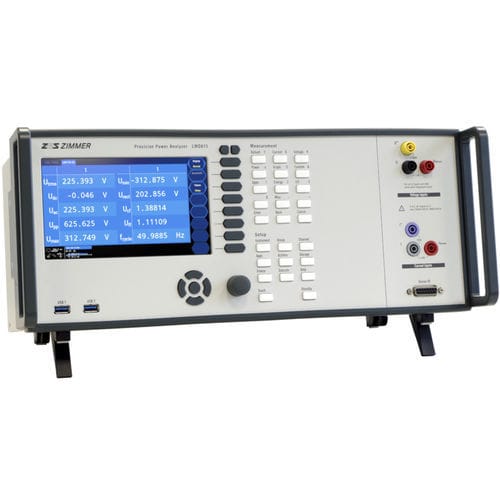

Power analyzer LMG611

electricspectrumcompact

One-shot Results for Narrowband, Full Spectrum and Harmonics • Outstanding accuracy of 0.015% of measured value + 0.01% of range • Full dynamic range of 500 µA to 32 A / 300 mV to 1000 V per channel available in single instrument • Power measurements from standby to full load (max. 32 A) without mechanical changes • Analog bandwidth DC up to 10 MHz • Gapless sampling up to 18 bit and a minimal cycle time of 30 ms • Delay time between V and I input < 3ns, very precise measurements at small power factors (PF) and/or high frequencies • Simultaneous measurement of narrow- and broadband values through innovative DualPath architecture • Simultaneous capturing of fundamental frequency and broadband RMS values for instantaneous detection of losses, resp. high-frequency components • Harmonics and interharmonics up to 2000. order, as required by EN61000-4-7 • With optional I/O card speed/torque inputs freely configurable for all signal types (analogue, frequency as RS422,TTL or HTL) via menu • Flexible scripting tool for custom applications • Simultaneous measurement of V, I, P values and harmonics, presentation in tabular or graphical form • Signal filters freely configurable by frequency, type and characteristics • Synchronization to different frequencies • Flicker measurement, interactions between grid and appliance according to EN61000-4-15
