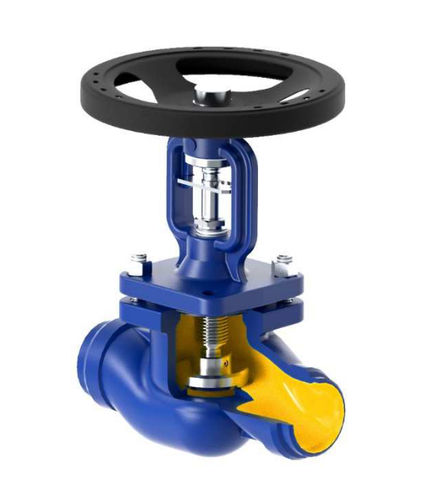

Valve with bellows seal zBEL 237globewith handwheelfor water
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel
- Media
- for water, for oil, for steam, for compressed air
- Body
- weld, stainless steel, steel, cast steel
- Applications
- industrial, for heating, for refrigeration, for shipbuilding
- Other characteristics
- with bellows seal
- DN
Max.: 300 mm
(11.811 in)Min.: 15 mm
(0.591 in)- Pressure
40 bar
(580.2 psi)- Temperature
Max.: 450 °C
(842 °F)Min.: -60 °C
(-76 °F)
Description
Working position: Any
Features
•high tightness (leakproofness class – A acc. to EN -12266 – 1)
•environment-friendly
•tests acc. to EN – 12266 – 1
•face-to-face dimension according to EN 558 series 1
Bellow valve, ends welded, form straight 237
Cast steel GP240GH F
Stop valve; seat - stainless steel
