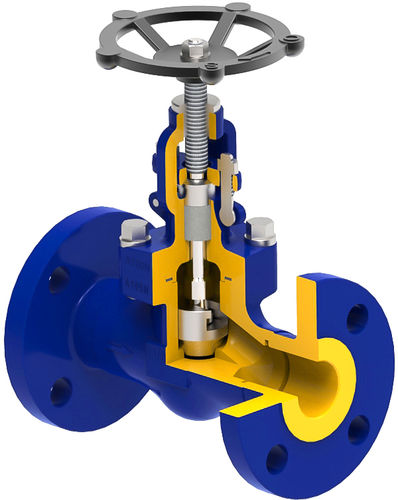

Globe valve zGLO 208 with handwheelstopfor water
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel
- Function
- stop
- Media
- for water, for steam, for compressed air
- Body
- flange, forged steel
- Applications
- chemical, for heating, for the petroleum industry, for shipbuilding
- Other characteristics
- DIN, ANSI, compact
- DN
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)- Pressure
20 bar, 50 bar, 100 bar
(290.1 psi, 725.2 psi, 1,450.4 psi)- Temperature
Max.: 425 °C
(797 °F)Min.: -29 °C
(-20 °F)
Description
high tightness (leakprooftightness class A according to EN – 12266 – 1)
environment friendly
tests according to API 598 or EN 12266-1
installation length according to DIN 3202 for classes according to ANSI B16.10
according to EN 558 PN 40 – series 1 for DN 15-32
PN 100- series 28 for DN 15-32
flange connections according to ASME B16.5 or PN-EN 1092-1
