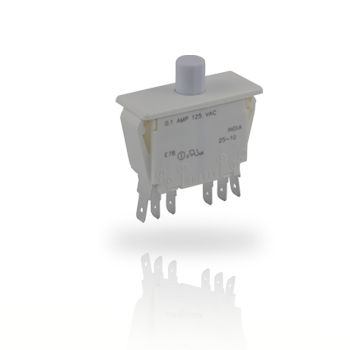

Push-button switch E/F7 Series

Pushbutton E/F7 Series •Double-pole panelmount pushbutton switch •Momentary, Push-Pull (reset) and Cheat Interlock versions •Long-life coil spring, snap-action mechanism •Agency approved extended-life versions available •VDE approval available on select models (F Series) •Snap-in panel mounting Technical specifications •Series Panel mount switch •Electrical •Ambient temperature – 40° to + 85°C •Flammability rating UL94V-O •Materials •Housing Thermoplastic Polyester, •Valox (single pole versions), •Vandar (double pole versions) •Actuator Thermoplastic Acetal (E Series), Valox •Terminals* Brass •Moving blade Beryllium Copper •Spring Stainless steel •Contacts •E65, E/F69, E/F77, E/F79 •E/F68, E/F78 •AgCdO •Au (Crosspoint) •* Common terminals are plated – the remaining terminals are not plated. •Approvals ❶ •Approvals Code •UL E •VDE & UL F •Confi guration ❷ •Confi guration Code •Singe pole version 6 •Double pole version 7 •Actuator ❹ •Terminal type Code •Basic momentary 00A •Push-pull momentary 20A •Momentary (cheat interlock) 30A •Short button momentary 40A •Momentary for auxiliary actuator 50A •Terminals •Series Terminals •E68, E69, E77, E78, E79 Q.C. terminal 4.8 x 0.5 mm •E65, E75, F68, F69, F77, F78, F79 Q.C. terminal 4.8 x 0.8 mm
