Lever switch DCJK

springsingle-poleIP67

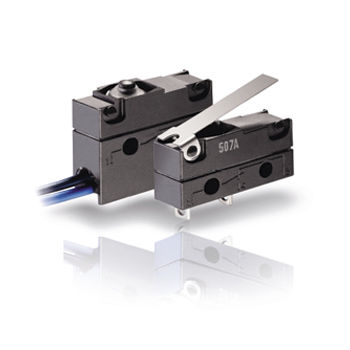

Subminiature DCJK Highly versatile IP6K7 sealed subminiature switch Switching current up to 10 A at 12 VDC 4 different operating points and 3 wire socket heights High contact stability due to specific contact materials Actuators can also be retrofitted Operating temperature up to 120 °C Silicon-free version available Technical specifi cations Series DCJK Contact confi guration S.P.D.T., S.P.S.T. - N.O. or S.P.S.T. - N.C. Contact gap < 3 mm Switching voltage (max.) 12 V DC Switching current 0.005 to 3 A DC Operating voltage 300 cN without auxiliary actuator depending on model Total travel Up to approx. 2.0 mm possible Mechanical life Up to 2 x 106 operations Electrical life depending on load Up to 2 x 106 operations Ambient temperature – 40 to + 85°C/120°C Model with leads – 40 to + 105°C Materials Housing PET/ PA Actuator POM (T85), PA (T120) Auxiliary actuator Stainless steel or plastic Sealing gasket VQM Terminals CuZn silver-plated Leads Cu, PVC-sheated Contacts AgNi AgPd (Crosspoint) AuAg (Crosspoint) Degree of protection Switch interior IP67 Terminal type Type of terminal available off -the-shelf: Solder terminal, straight Connecting leads on actuator side Connecting leads opposite actuator side Types of connector available on request: Welding terminal Self cutting clamp connector Solder terminal, lateral PCB terminal 0.8 x 0.5 mm, straight PCB terminal 0.6 x 0.5 mm, straight
