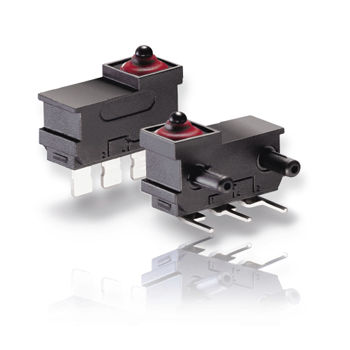

Subminiature switch DX series

single-poleIP67sealed

Sub-subminiature DJ IP6K7 sealed sub-subminiature switch Switching current from 5 mA up to 2 A at 12 VDC Suitable for actuation at angles of up to 40° High contact stability with AuAg crosspoint contacts Easy installation due to connector pins and fastening nut Operating temperature up to 85 °C Mechanical life min. 500,000 actuations Technical specifi cations Series DJ ❶ Contact confi guration S.P.D.T. Contact gap < 3 mm Switching voltage (max.) 12 V DC up to 60 V on request Switching current 0.005 to 2 A DC Operating voltage Max. 120 cN Total travel Approx. 2.0 mm Mechanical life Min. 500,000 operations Electrical life (max. load) Min. 100,000 operations Ambient temperature – 40 to + 85°C Materials Base PBT/PES Cover PBT + ASA Actuator POM Sealing gasket VMQ Terminals CuZn silver-plated Contacts AuAg (Crosspoint) Degree of protection Switch interior IP67 Circuitry ❸ Model Code S.P.D.T. G Terminal type ❹ Model Code Solder terminal, straight, 2.5 x 0.5 mm, w/o location pins AN Solder terminal, straight, 2.5 x 0.5 mm, RH side location pins AR Solder terminal, straight, 2.5 x 0.5 mm, LH side location pins AL PCB terminal, straight, 0.7 x 0.5 mm, w/o location pins BN PCB terminal, straight, 0.7 x 0.5 mm, mit RH side loc. pins BR PCB terminal, straight, 0.7 x 0.5 mm, mit LH side loc. pins BL Sub-subminiature DK Sealed sub-subminiature switch IP6K5 sealed (IP6K7 on request) Switching current from 5 mA up to 2 A at 12 VDC Actuation possible vertically or with auxiliary actuator High contact stability thanks to AuAg crosspoint contacts Operating temperature up to 105 °C Mechanical life min. 500,000 actuations
