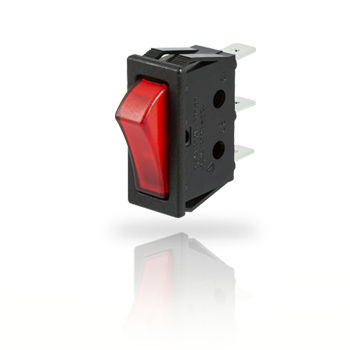

Rocker switch TR Series

springsingle-poleilluminated

Rocker TR Series 16A rocker switch in 11mm wide package Lighted and non-lighted versions Double-throw and three-position versions available Contact gap > 3mm Mechanical life min. 50,000 operations Industry-standard cut-out dimensions Electrical Specifications Inrush Rating – 2 Position 48 A Inrush Rating – 3 Position 24 A Dielectric Strength 1000 VAC for 1 minute Insulation Resistance 100 MΩ min at 500 VDC Initial Contact Resistance 0.020 Ω max Material and Environmental Specifications Actuator, non-lighted Nylon 66 94V-2 Actuator, lighted Polycarbonate Base Nylon 66 94V-2 Spring Steel Wire Contacts Silver Alloy Movable Arm Silver-Plated Copper Alloy Terminals Silver-Plated Copper Alloy Operating Temperature Range -20 OC to +85 OC (-4 OF to +185 OF)
