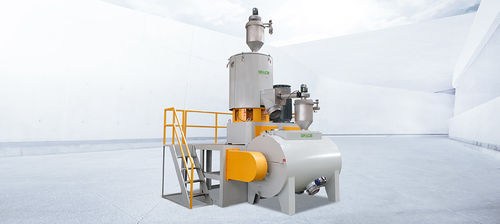

Mixing unit SRL series

Grace Adopts computer controlling system which achieve fully automatic control such as multiple formulation store, stochastic printing, real-time dynamic temporary monitor, fault alarm and multi-level password protection Value advantage 1. The seal between container and cover adopts double seal and pneumatic open for easy operation; It makes better sealing Compare with traditional single seal 2. The vane adopt big tilt angle and single layer palm, which make the material go up along the inside wall of container, and realize the aim of sufficient cooling by falling through cooling jacket 3. To ensure quality of products and improve production flexibility, safety and reliability Accurately measurement is a big step, Grace specially designed to set The temperature point inside container caused directly contact with the material which avoid material feeding running when material temperature is lower or higher than setting 4. To avoid material leakage and improving quality of final product,discharging valve adopt plunger type gate and axial seal The internal surface of the gate is strict with the internal wall of the container which make no dead angle 5. Top cover has degassing device, it can get rid of water vapor in the course of hot mixing and avoid undesirable effects on the material 6. Adopting frequency conversion speed regulator, the starting and speed regulation of motor is controllable, it preventing the large current produced when starting high power motor, which produces impact on the power grid, and protect the safety of the power grid, and achieve the speed control
