Stretch blow molding machine SR-4500for PETfor bottlesfor PET containers
Add to favorites
Compare this product
Characteristics
- Type
- stretch
- Treated material
- for PET
- Finished product
- for bottles, for PET containers
- Other characteristics
- automatic, fully-electric, multi-cavity
- Hollow part volume
Min.: 350 ml
(11.8 US fl oz)Max.: 2,000 ml
(67.6 US fl oz)- Overall width
1.8 m
(5'10" )- Overall lenght
4 m
(13'01" )- Overall height
2.5 m
(8'02" )
Description

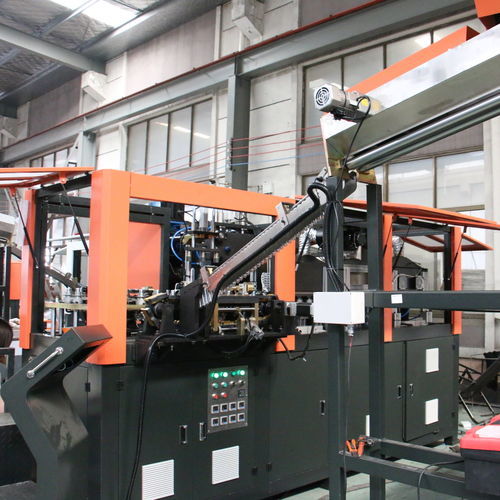

Stretch blow molding machine SR-4500
Bottle type specification：
•Three cavities
•Max.volume:2,000ML
•Bottle mouth maximum:38mm
•Bottle biggest diameter:105mm
•Bottle maximum height:330mm
Production specification:
•Produced up to 4,500 BPH
•Bottle type capacity:500ML
•Bottle type weight:15g
•Bottle type:circular
Power specification:
•Light tube quantity:40PCS
•Light tube power:2.0KW
•Maximum heating power:80KW
•All electric machine installation:88KW
•Actual consumption:40%~70%
Air pressure specification:
•Work pressure:7-9kg/cm2
•Low-pressure gas consumption:1,000L/min
•Blow bottle pressure:25-35kg/cm2
•Higher -pressure gas consumption:1,500L/min
Cooling water specification:
•Work pressure:5-6 kg/cm2
•Temperature range:10℃
•Consumption:5,000kcal/hr
•Cooling water flow:30L/min
Machine specification:
•Size of the machine:4.0x1.8x2.45(m)
•Weight of the machine:4.0ton
