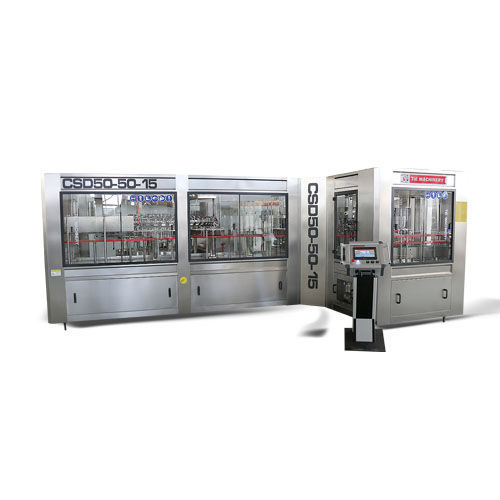

Beverage rinser-filler-capper CSD series

for plastic bottlesfor carbonated drinksautomatic

CSD series carbonated beverage filling machine is a three-in-one filling machine integrating bottle rinsing, filling and capping. The machine is controlled by PLC system and operated by touch screen with high degree of automation. According to the characteristics of gas beverage, the filling valve adopts isobaric filling valve, precise liquid level control, stable filling. Equipped with carbon dioxide pressure precise control pressure regulating device, filling level accurate and stable. The main machine is equipped with many protection and alarm devices such as bottle jam, lack of bottle, lack of cover and overload to ensure the quality of carbonated drinks. ▼ Working Process PET bottles enter into the filling machine through the air conveyor and transferred into the rinsing machine through the dial bottle star wheel. The back to the table of bottle-washer machine is equipped with bottle clamps, they can clamp the bottle mouths and turn 180° along the guide rail, which make bottle mouths downward. In a specific area of bottle-washer machine, the nozzles of bottle-washer clamps squirt water, which can wash the inner wall of bottles. After washing and draining, the bottles are clamped by the bottle clamps and then turned over 180° along the guide rail, so that the bottle mouths are upward. The washed bottles are exported from bottle-washer machine through bottle-pulling star wheel and transported to filling machine. The bottles entering the filling machine are clamped by the bottleneck snap-gauge which installed on the lifting equipment, and bottle mouths rise under the action of cam to contact the filling valve, then the filling valve is opened by the bottle mouth.
