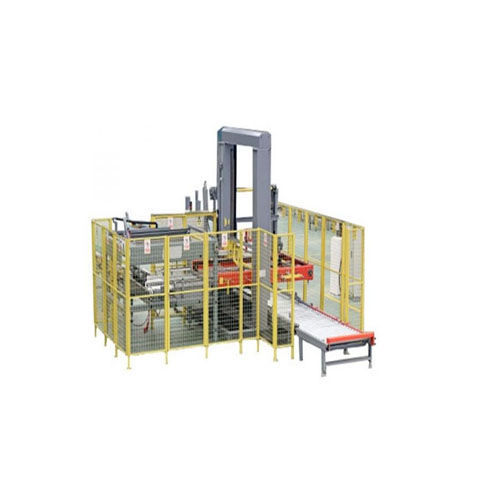

Robotic palletizer TIE-MD series
bagfor boxescarton

robotic palletizer
robotic palletizer
Add to favorites
Compare this product


Characteristics

Type
robotic
Product applications
bag, for boxes, carton, industrial
Other characteristics
automatic, high-speed
Throughput

Max.: 40 p/min

Min.: 17 p/min

Pallet width

1,100 mm
(43.31 in)

Pallet length

1,300 mm
(51.18 in)

Maximum palletizing height

1,600 mm, 1,800 mm
(62.99 in, 70.87 in)

Machine length

3,940 mm, 7,300 mm, 8,000 mm
(155.12 in, 287.4 in, 314.96 in)

Machine width

3,300 mm, 5,200 mm, 5,300 mm
(129.92 in, 204.72 in, 208.66 in)

Machine height

3,200 mm, 3,550 mm
(125.98 in, 139.76 in)

Electric powered

220 V, 380 V

Description

As an important part of the  unmanned packing solution  in the process of secondary packaging production line, TIE-MD 45 Automatic Robot Palletizer is a high-speed palletizer which designed and manufactured by high-speed parallel industrial robot technology. It has excellent characteristics such as excellent safety performance, fast moving speed, high positioning accuracy and durability of key components.    ▼ Features Of Equitment 1. Robot has powerful operation function and high precision operation,which can realize fast packing, palletizing and disassembling. 2. In the production line, the robot palletizing for packing, palletizing and disassembling operations can be flexibly arranged, and two or more lines can be palletized simultaneously, which is the ideal choice for palletizing at the end of the production line. 3. Servo motors, programmable controllers and variable frequency speed controllers adopt first-class products to ensure the reliability and long life of the system hardware.            4. High-quality hardware and specially designed control software are combined to achieve a high degree of automation of the system. The perfect safety interlocking mechanism can provide protection for equipment and operators. 5. Our excellent technology, stable and reliable products and perfect services have improved the level of factory automation in an all-round way.
