Single pair Ethernet (SPE) is a technology for Ethernet data transmission only through a single pair of wires. In addition to data transmission via Ethernet, SPE can also supply power to terminal equipment via podl (power supply via data line). The products are used in factory automation, industrial Internet of things (iiot), robots, building wiring and other occasions.
15m @ 100Mbps & 1Gbps
40m @ 1Gbps
1000m @ 10Mbps
Podl power supply function

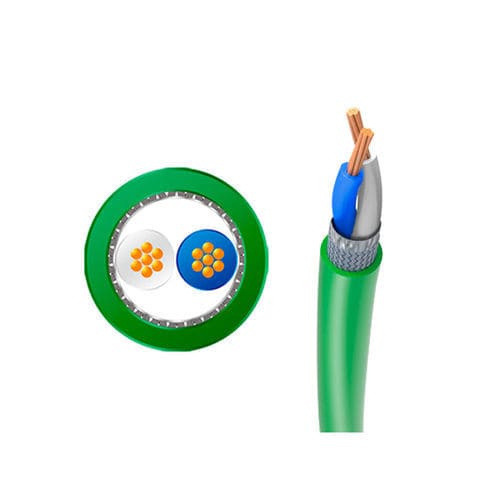

Small cable outer diameter, flexible and light
Conductor: solid bare copper conductor
Insulation: foamed PE
Shielding: wire to aluminum foil shielding plus tinned copper braiding
Sheath: PVC / pur
Color: black, green
Temperature range: - 40 ℃ ~ 80 ℃
Characteristic impedance: 100 ± 5 Ω
Minimum bending radius:
5D (d = cable diameter)
Insulation resistance:
≥ 5GΩ.km
Reference standard:
IEC61156-12、IEC61156-13 (TypeA-1000)
