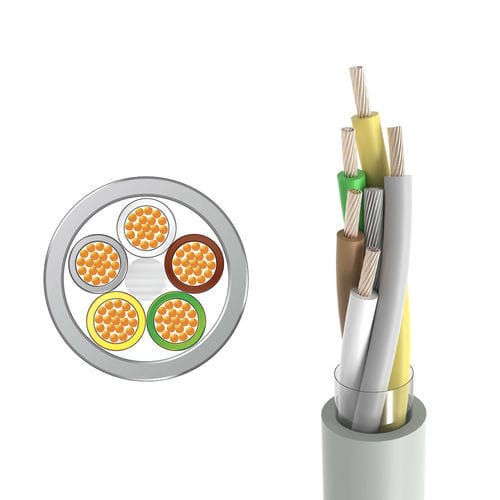

Data electrical cable LF-DATA LiYYDINLIYY typestranded
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- DIN
- Configuration
- stranded, LIYY type
- Core material
- copper
- Applications
- control
- Material of the insulation
- PVC-sheathed
- Norms
- IEC
- Other characteristics
- flexible
- Nominal voltage
350 V, 500 V
- Temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Can be used as data transmission and control cables in electronics of computer systems, electronic control equipment, machine work,measuring instrument, assembly line, etc. Suitable for the place of low electrical interference.
—Capacitance
core/core approx 120nF/km
—Insulation Resistance（ 20℃）
≥200MΩ.km
—Rated Voltage
0.14mm²=350V
＞0.14mm²=500V
—Minimum Bending Radius
Fixed Application : 4D (D=cable diameter)
Occasional Movement : 10D (D=cable diameter)
Conductor:
Ultra-fine stranded bare copper, according to IEC 60228/VDE 0295
Insulation:
PVC
Insulation Color:
According to DIN 47100
Jacket:
PVC
Color:
Grey(similar to RAL7035)
Flame resistance according to IEC60332-1
Good property of flexibility
Small bending radius
Conditional oil resistance
