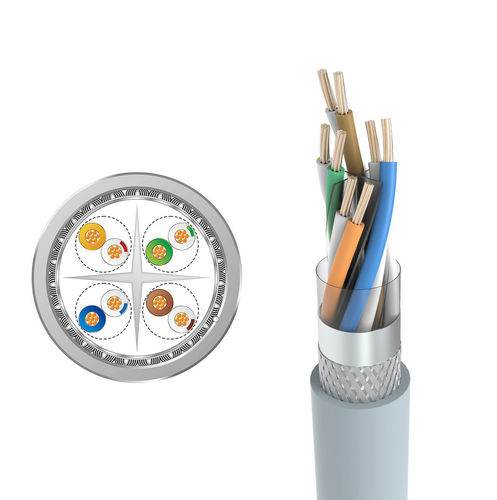

CAT 6 electrical cable LONGTRONIC®
dataEthernetT

CAT 6 electrical cable - LONGTRONIC® - Zhaolong Interconnect - data / Ethernet / T
CAT 6 electrical cable - LONGTRONIC® - Zhaolong Interconnect - data / Ethernet / T
CAT 6 electrical cable - LONGTRONIC® - Zhaolong Interconnect - data / Ethernet / T - image - 2
CAT 6 electrical cable - LONGTRONIC® - Zhaolong Interconnect - data / Ethernet / T - image - 3
CAT 6 electrical cable - LONGTRONIC® - Zhaolong Interconnect - data / Ethernet / T - image - 4
CAT 6 electrical cable - LONGTRONIC® - Zhaolong Interconnect - data / Ethernet / T - image - 5
Add to favorites
Compare this product


Characteristics

Type
data
Format
Ethernet, T
Protection
flame-retardant, low-smoke
Configuration
UTP, foil
Core material
copper, aluminum
Applications
industrial
Number of wire
solid
Material of the insulation
PVC-sheathed, polyethylene insulated, Mylar-shielded
Color of the insolation
gray
Other characteristics
halogen-free, EMI, high-speed, ANSI, CAT 6
Nominal voltage

1,000 V

Temperature

Min.: -40 °C
(-40 °F)

Max.: 80 °C
(176 °F)

Description

As a high-speed data cable, it is applied to the generic cabling system of cloud computing center, large data room, office, residential area, factory and other buildings. Applied in IEEE 802.3: 10Base-T, 100Base-T, 1000base-t. And can also be applied to an industrial environment. Cable flame retardancy meets iec60332-1-2 Wire to aluminum foil shielding and tinned copper braiding Excellent anti external electromagnetic interference ability The signal transmission frequency can reach 250MHz Conductor: solid bare copper conductor Insulation: PE Shield: SF / UTP: aluminum foil shield plus tinned copper braid Sheath: PVC / LSZH Color: gray Characteristic impedance: 100 ± 15 Ω Insulation resistance: ≥ 5g Ω. Km Minimum bending radius Fixed application: 8D (d = cable diameter) Reference standard IEC61156-5, ANSI/TIA-568-C.2、EN50173&ISO/IEC11801
