CAT 5e electrical cable LONGTRONIC®

dataEthernetT

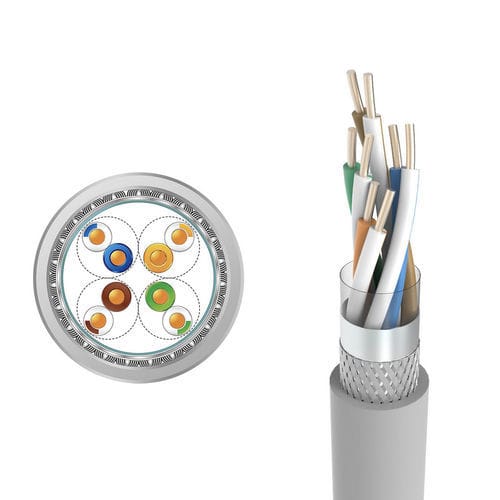

As a high-speed data cable, it is applied to the generic cabling system of cloud computing center, large data room, office, residential area, factory and other buildings. Applied in IEEE 802.3: 10Base-T, 100Base-T, 1000base-t. And can also be applied to an industrial environment. Cable flame retardancy meets iec60332-1-2 Shielded type has excellent anti external electromagnetic interference ability, especially SF / UTP structure Signal transmission frequency can reach 100MHz Conductor: solid bare copper conductor Insulation: PE Shield: SF / UTP: aluminum foil shield plus tinned copper braid Sheath: PVC / LSZH / pur Color: gray, blue characteristic impedance 100±15Ω@100MHz insulation resistance ≥5GΩ.km Minimum bending radius Fixed application: 8D (d = cable diameter) Reference standard IEC61156-5, ANSI/TIA-568-C.2 EN50173&ISO/IEC11801
