CAT 5e electrical cable LONGTRONIC®
dataEthernetstranded

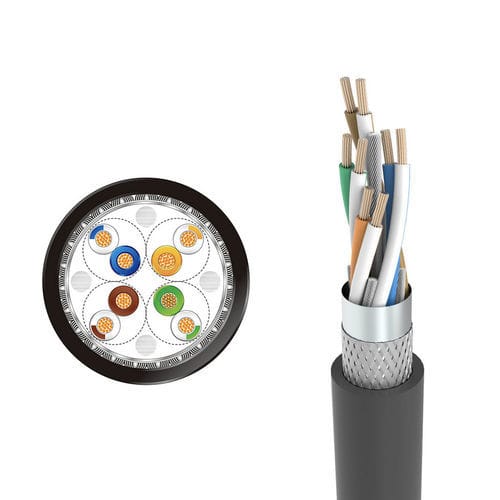

CAT 5e electrical cable - LONGTRONIC® - Zhaolong Interconnect - data / Ethernet / stranded
CAT 5e electrical cable - LONGTRONIC® - Zhaolong Interconnect - data / Ethernet / stranded
CAT 5e electrical cable - LONGTRONIC® - Zhaolong Interconnect - data / Ethernet / stranded - image - 2
CAT 5e electrical cable - LONGTRONIC® - Zhaolong Interconnect - data / Ethernet / stranded - image - 3
Add to favorites
Compare this product


Characteristics

Type
data
Format
Ethernet
Configuration
stranded, UTP, foil
Core material
copper, aluminum
Applications
industrial
Material of the insulation
polyethylene insulated, Mylar-shielded
Color of the insolation
black
Norms
IEC
Other characteristics
flexible, EMI, ISO, high-speed, ANSI, CAT 5e
Nominal voltage

1,000 V

Temperature

Min.: -40 °C
(-40 °F)

Max.: 80 °C
(176 °F)

Description

As a high-speed data cable, it can be applied to CNC machine tools, engraving machines, woodworking machinery, video monitoring and so on. It is especially suitable for drag chain applications or frequently moving occasions. Flame retardancy meets iec60332-1-2 Good flexibility and small bending radius It has good anti external electromagnetic interference ability It has good oil resistance and wear resistance Signal transmission frequency can reach 100MHz Conductor: high flexibility stranded copper conductor, symbol IEC 60228 / VDE 0295 class 6 conductor standard Insulation: PE shield: SF / UTP: aluminum foil shielding and tinned copper braiding S / UTP: tinned copper braided shield Sheath: PVC / pur Color: black, blue characteristic impedance 100±15Ω@100MHz insulation resistance ≥5GΩ.km Minimum bending radius Fixed application: 5D (d = cable diameter) Mobile application: 8D (d = cable diameter) Reference standard IEC61156-5, ANSI/TIA-568-C.2 EN50173&ISO/IEC11801
