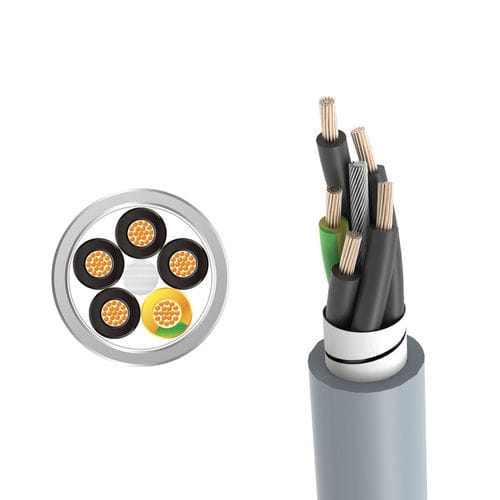

Power cable MC 410
DINstrandedcopper

power cable
power cable
power cable
power cable
Add to favorites
Compare this product


Characteristics

Type
power
Format
DIN
Configuration
stranded
Core material
copper
Applications
control, outdoor, for drag chains
Color of the insolation
black, green, white
Norms
IEC
Other characteristics
flexible, yellow
Nominal voltage

300 V, 450 V, 500 V, 750 V

Temperature

Max.: 80 °C
(176 °F)

Min.: -40 °C
(-40 °F)

Description

Can be used as control cables in tool machines, conveyor belts, production lines of machinery production,and air-conditioning systems. It is suitable for fixed applications or non-sustained shuttle bending movement, but not for outdoor installation. —Insulation Resistance(20°C) ≥20MΩ.km —Minimum Bending Radius Fixed Application: 4D(D=cable diameter) Occasional Movement: 15D(D=cable diameter) Conductor: Fine stranded bare copper, according to IEC 60228/VDE 0295 class5 Insulation: PVC Insulation Color: According to DIN VDE 0293, black cores with white numbering, green-yellow conductor Jacket: PVC Color: Grey(similar to RAL 7001) Flame resistance according to IEC60332-1 Have small bending radius and good flexibility Conditional oil resistance Have smaller outer diameter to save space.
