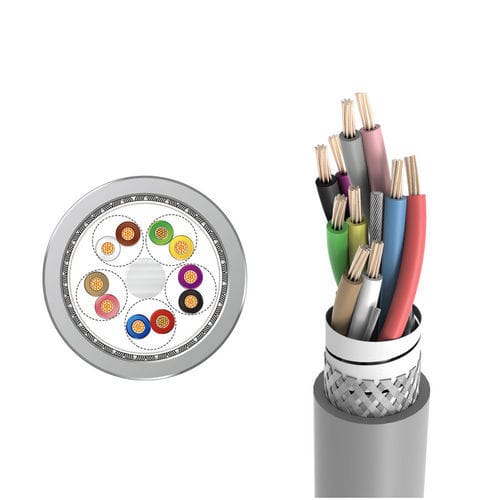

Power cable FD 930 CP-TP
DINshieldedstranded

power cable
power cable
power cable
Add to favorites
Compare this product


Characteristics

Type
power
Format
DIN
Protection
shielded
Configuration
stranded, spiral
Core material
copper
Applications
industrial, for robotics
Material of the insulation
PUR
Norms
IEC
Other characteristics
UL/CSA, EMI
Nominal voltage

300 V, 500 V

Temperature

Max.: 80 °C
(176 °F)

Min.: -50 °C
(-58 °F)

Description

This cable is designed for movement application with torsion.It is very suitable for industrial robots and manipulators. Extreme performance of resistant to oil. It can be used in low and high temperature whether indoors or outdoors. —Insulation Resistance(20°C) ≥100MΩ.km —Rated Voltage UL/CSA 300V IEC/VDE≤0.5mm2:300/300V >0.5mm2:300/500V —Minimum Bending Radius Fixed Application: 3D(D=cablediameter) Mobile Application: 5D(D=cablediameter) —Technical Certification UL20936 —Application of drag chain ≥10 million times Conductor: Ultra-fined stranded bare copper, according to IEC 60228/VDE 0295 class 6 Insulation: TPEE Insulation Color: According to DIN 47100 Shielded: Tinned copper spiral shield Jacket: PUR Color: Grey(similar to RAL 7001) Halogen free, flame resistance according to FT2 Good property of flexibility Good performance of resistant toexternal EMI Extreme oil resistance, abrasion resistance and anti-hydrolysis Extremely resistant to bending and torsion Resistant to low andhigh temperature
