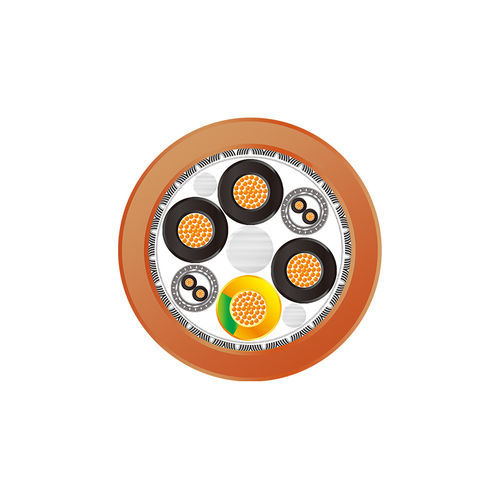

Power cable SERVO FD 327 CP

DINflame-retardantstranded

Can be used as connecting cables between motor and converter, or controller and motor of CNC machine tools, robots and other automation equipment. Intended for the place with serious electrical interference. Very suitable for drag chain or frequent movement in greasy and wet environment. —Insulation Resistance (20℃) ≥20MΩ.km —Minimum Bending Radius Fixed Application: 4D(D=cable diameter) Mobile Application: 7.5D(D=cable diameter) —Application of Drag Chain 3-8 million times Conductor: Ultra-fine stranded bare copper, in line with IEC 60228/VDE 0295 class 6 Insulation: PP Insulation Color: According to DIN VDE 0293, black cores with white numbering, green-yellow conductor Shield: Single control pair tinned copper braiding, double control pair AL/Mylar screen and tinned copper braiding, tinned copper overall braiding Jacket: PUR Color: Orange (similar to RAL2003) Halogen-free, flame retardance meets IEC60332-1 Good flexibility and small bending radius Excellent resistance to external electromagnetic interference Excellent oil resistance, abrasion resistance and anti-hydrolysis Low capacitance
