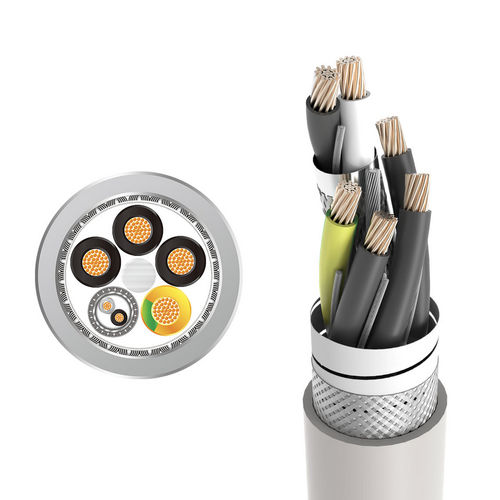

Power cable SERVO FD 318 CY

DINflame-retardantstranded

Can be used as connecting cables between motor and converter, or controller and motor of CNC machine tools, robots and other automation equipment. Intended for the place with serious electrical interference. It is very suitable for drag chain or frequent movement in high temperature environment. —Insulation Resistance (20°C) ≥20MΩ.km —Rated Voltage UL/CSA600V IEC/VDE≤0.5mm2:300/500V >0.5mm2:450/750V —Minimum Bending Radius Fixed Application: 4D(D=Cable diameter) Mobile Application: 7.5D(D=Cable diameter) —Technical certification UL2586 —Application of Drag Chain 3~8 million times Conductor: Ultra-fine stranded bare copper, in line with IEC 60228/VDE 0295 class 6 Insulation: PVC Insulation Color: According to DIN VDE 0293, black cores with white numbering, green-yellow conductor Inner Jacket: PVC Shield: Control pair tinned copper braiding, tinned copper overall braiding Jacket: PVC Color: Gray (similar to RAL 7001) Flame retardance according to VW-1/FT1 Good flexibility and small bending radius Excellent resistance to external electromagnetic interference Good oil resistance Excellent heat resistance
