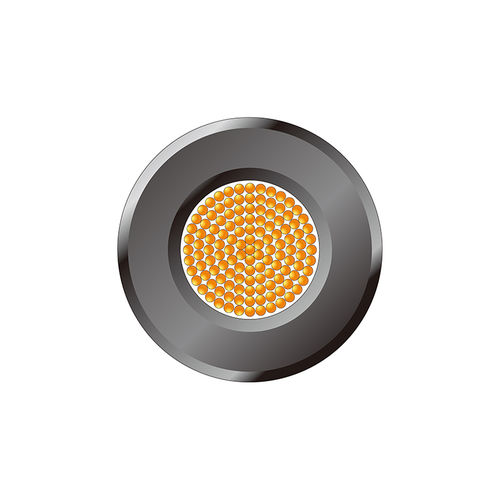

Power cable LONGHEAT™ SC 105 PVCstrandedcoppercontrol
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- stranded
- Core material
- copper
- Applications
- control, distribution
- Color of the insolation
- black
- Norms
- IEC
- Other characteristics
- UL
- Nominal voltage
600 V
- Temperature
Min.: -20 °C
(-4 °F)Max.: 105 °C
(221 °F)
Description
This cable is as control and connecting cable for electrical and
mechanica equipments.It apply to Power distribution box or be
used as electronic cable for transmission..Particularly suitable for
installation in high temperature.
—Temperature Range
-20℃~105℃
—Test Voltage
2000V/min（AC）
—Insulation Resistance（20℃）
≥20MΩ.km
—Rated voltage
600V
—Minimum Bending Radius
Fixed Application:
4D（D=cable diameter）
—Technical Certification
UL AWM 1015
Conductor :
Fine stranded bare copper, according to IEC 60228/VDE 0295 class 5
Insulation :
PVC
Insulation Color :
Black (other colors are availalble)
Flame resistance according to VW-1/F11
Good property of flexibility
Small bending radius
Resistant to high temperature
