Data electrical cable 1354

strandedflatfoil

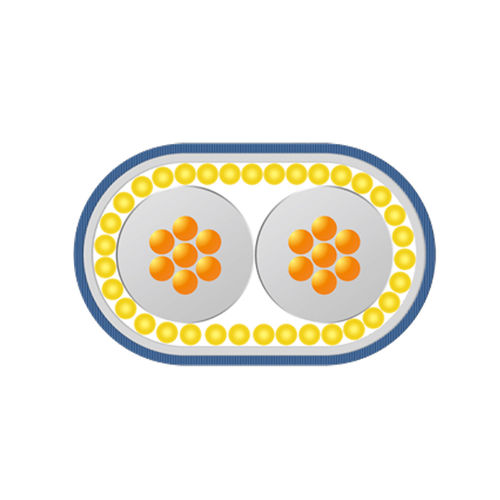

The product has excellent bending resistance, twisting resistance, electromagnetic interference resistance and superior transmission performance. The product has wide application field, strong adaptability, good heat resistance, flame resistance and atmospheric resistance, and can work stably in the environment temperature of - 55 ℃ - 250 ℃. This product can replace the electronic flat line, printing soft board, and is widely used in the internal data transmission of the new generation of notebook computers, LCD displays, handheld game machines, precision medical devices and other micro electronic equipment. At the same time, it can also be used in aerospace, intelligent robots, military and other special fields with good environmental adaptability and reliability. Impedance: 90 Ω, 100 Ω Reference standard: UL758 The conductor is stranded tinned copper or silver tinned copper alloy PFA is used for insulation The shield is wound with silver plated copper or tin plated copper alloy Copper foil and color layer pet tape sheath Material complies with ROHS standard
