- Nylon cable gland
- Zhejiang BangNai Electric Co. Ltd

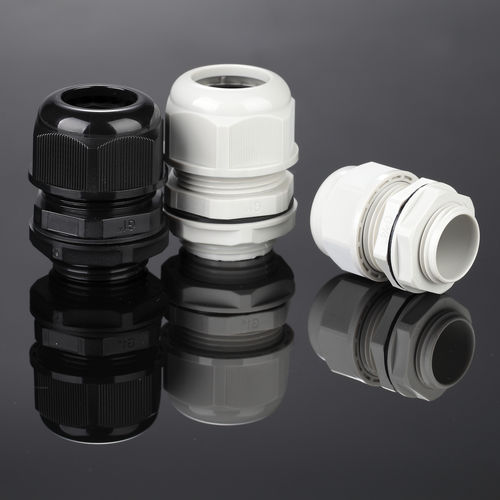

Nylon cable gland G(PF)-Typewaterprooffire-resistantUV-resistant
Add to favorites
Compare this product
Characteristics
- Material
- nylon
- Protection level
- waterproof, fire-resistant, UV-resistant, corrosion-resistant, increased safety, weatherproof
- Other characteristics
- threaded, straight, hexagonal, for railway applications, high-temperature, for control panels, with sealing cap, for photovoltaic modules, threaded
- Cable diameter
Max.: 25 mm
(0.98 in)Min.: 4 mm
(0.16 in)- Thread diameter
Max.: 41.9 mm
(1.65 in)Min.: 13.16 mm
(0.52 in)- Operating temperature
Max.: 120 °C
(248 °F)Min.: -20 °C
(-4 °F)
Description
■ Material: Parts A, C, E are made of UL approved nylon PA66, parts B and D are made of nitrile butadiene rubber (NBR).
■ Thread spec.: Metric, PG, G, NPT.
■ Working temperature: -40℃ to 100℃ in static state, instantaneous heat resistance up to 120℃; -20℃ to 80℃in dynamic state, instantaneous heat resistance up to 100℃.
■ Characteristics: Special design of clamping die, sealing nut and rubber part, applicable for vibrating machine. Large range in clamping the cable, ultra-strong stretching resistance, waterproof, dustproof, and high ability to resist salt, acid, alkali, alcohol, grease and general solvent.
■ Color: Black(RAL9005), light grey (RAL7035), silver (RAL7001) as well as special colors that can be designed at request.
