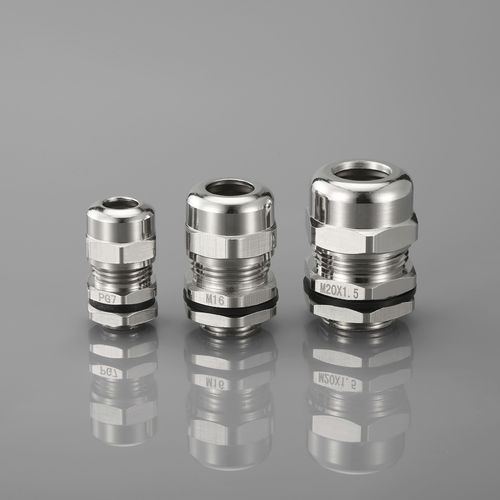

Nickel-plated brass cable gland NPT Type
IP68fire-resistantUV-resistant

nickel-plated brass cable gland
nickel-plated brass cable gland
nickel-plated brass cable gland
nickel-plated brass cable gland
nickel-plated brass cable gland
Add to favorites
Compare this product


Characteristics

Material
nickel-plated brass
Protection level
IP68, fire-resistant, UV-resistant, weatherproof
Other characteristics
for the chemical industry
Cable diameter

Min.: 3 mm
(0.12 in)

Max.: 70 mm
(2.76 in)

Thread diameter

Min.: 13.6 mm
(0.54 in)

Max.: 88.6 mm
(3.49 in)

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 100 °C
(212 °F)

Description

Thread: Metric, PG, G(PF), and NPT thread Materials: Brass with nickel plated for A. C. F parts, UL approved Nylon PA66 (Flammability UL 94V-2) for E part, EPDM rubber for B. D parts.. Protection degree: IP68 Working temperature: -40℃ to 100℃ Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency. Seals: For cable outlet holes (several holes and flat), all the cables can not easily entangled and waterproof respectively.
