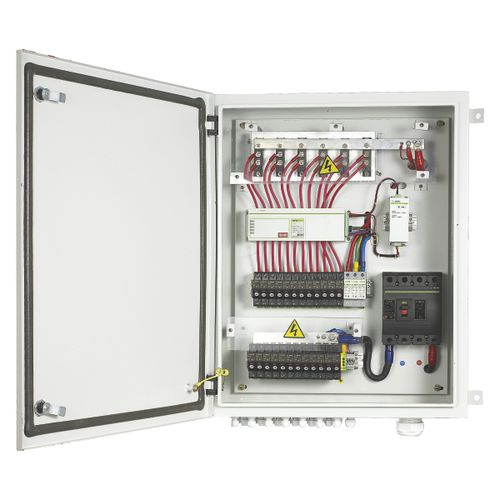

Wall-mount box BHTZ-12

modularsolar combiner

ZJ·BENY PV String DC Combiner Boxes are key components in the PV Solar power systems,which are placed between Solar Modules and the inverters. ●Efficient Protection Grade IP65/66 ZJ.BENY Combiner box is waterproof,dust prloof and anti-corrosion,withstand harsh environmental exposure. ●PV Solar string Current Aggregation Multiple strings input ,one string output,Available for 1-24strings,Max current 30A per string. ●Effective Isolating ZJ.BENY Series Isolator Switches,current 16A to 630A,Max voltage up to 1500VDC,widely meet the various demands from PV power systems. ●Lightning Protection ZJ.BENY BUD-40/3 Surge protector device with pluggable design,up to 1000VDC,40KA,with lightning protection for PV power system. ●Over-current Protection and Short-circuit Protection ZJ.BENY BR-30 touch-safe fuse with LED indicator light the function is over current protection. ZJ.BENY BD and BB1 series circuit breaker,with the function of Short-circuit protection and over current protection,the Max current up to 630A,Max voltage up to 1000VDC.
