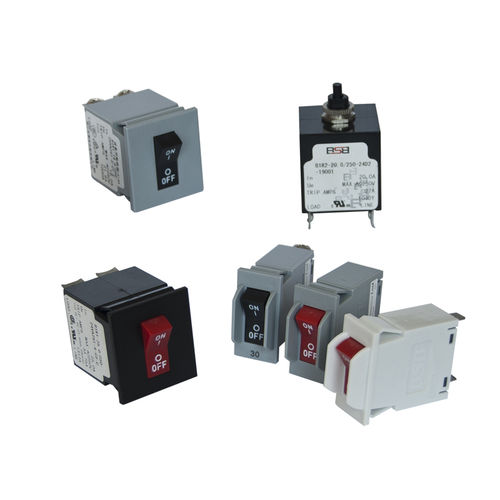

Hydraulic-magnetic circuit breaker B1 series
overloadlow-voltage2-pole

Hydraulic-magnetic circuit breaker - B1 series - ZHEJIANG BSB ELECTRICAL APPLIANCES CO.,LTD - overload / low-voltage / 2-pole
Hydraulic-magnetic circuit breaker - B1 series - ZHEJIANG BSB ELECTRICAL APPLIANCES CO.,LTD - overload / low-voltage / 2-pole
Hydraulic-magnetic circuit breaker - B1 series - ZHEJIANG BSB ELECTRICAL APPLIANCES CO.,LTD - overload / low-voltage / 2-pole - image - 2
Hydraulic-magnetic circuit breaker - B1 series - ZHEJIANG BSB ELECTRICAL APPLIANCES CO.,LTD - overload / low-voltage / 2-pole - image - 3
Hydraulic-magnetic circuit breaker - B1 series - ZHEJIANG BSB ELECTRICAL APPLIANCES CO.,LTD - overload / low-voltage / 2-pole - image - 4
Hydraulic-magnetic circuit breaker - B1 series - ZHEJIANG BSB ELECTRICAL APPLIANCES CO.,LTD - overload / low-voltage / 2-pole - image - 5
Hydraulic-magnetic circuit breaker - B1 series - ZHEJIANG BSB ELECTRICAL APPLIANCES CO.,LTD - overload / low-voltage / 2-pole - image - 6
Hydraulic-magnetic circuit breaker - B1 series - ZHEJIANG BSB ELECTRICAL APPLIANCES CO.,LTD - overload / low-voltage / 2-pole - image - 7
Hydraulic-magnetic circuit breaker - B1 series - ZHEJIANG BSB ELECTRICAL APPLIANCES CO.,LTD - overload / low-voltage / 2-pole - image - 8
Hydraulic-magnetic circuit breaker - B1 series - ZHEJIANG BSB ELECTRICAL APPLIANCES CO.,LTD - overload / low-voltage / 2-pole - image - 9
Hydraulic-magnetic circuit breaker - B1 series - ZHEJIANG BSB ELECTRICAL APPLIANCES CO.,LTD - overload / low-voltage / 2-pole - image - 10
Hydraulic-magnetic circuit breaker - B1 series - ZHEJIANG BSB ELECTRICAL APPLIANCES CO.,LTD - overload / low-voltage / 2-pole - image - 11
Add to favorites
Compare this product

Go to the ZHEJIANG BSB ELECTRICAL APPLIANCES CO.,LTD website for more information

Characteristics

Type
hydraulic-magnetic
Electrical characteristics
overload, low-voltage, 2-pole, AC/DC
Operating mode
manual reset
Applications
distribution, generator, for network protection, for railway applications, for DC applications, for power generation installations, electrical power supply
Number of poles
single-pole
Other characteristics
molded case, outdoor, indoor, rocker switch type, high-performance, draw-out, push-button
Primary current

Min.: 1 A

Max.: 40 A

VAC

250 V

VDC

80 V

Description

Circuit Breaker-B1 Series B1 series product is a hydraulic electromagnetic circuit breaker which our company design and develop by adopting international advanced technology.The circuit breaker consists of shell,operating mechanism,contact arc extinguishing system and hydraulic solenoid tripping device and other parts.The circuit breaker is used in AC50Hz/60Hz,rated voltage DC80V or AC250V equipment network circuit.It is mainly used for a variety of equipment and lines to provide accurate and reliable short circuit and overload protection. Description Maximum voltage: 250VAC 50/60 Hz, 80VDC Current Ratings: 1A to 40A. Auxiliary switch: SPDT,3A (0.5A) 125/250VAC, 3A 30VDC Number of poles: 1 pole, 2 poles Operating environment: -40℃ to +85℃. Certification: CCC/ UL/ TUV/ CSA
