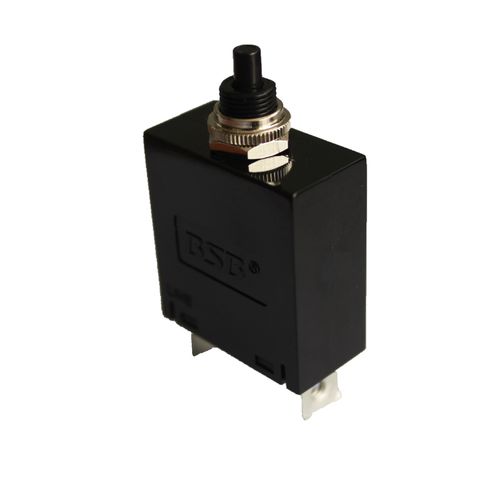

Hydraulic-magnetic circuit breaker B1 seriesmanual resetdistributionfor railway applications
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic-magnetic
- Operating mode
- manual reset
- Applications
- distribution, for railway applications, generator
- Number of poles
- single-pole
- Other characteristics
- miniature
- Primary current
Max.: 40 A
Min.: 1 A
- VAC
Max.: 250 V
Min.: 0 V
- VDC
Max.: 80 V
Min.: 0 V
Description
Hydraulic Magnetic Circuit Breaker
Hydraulic Magnetic Circuit Breaker-B1
B1 series product is a hydraulic electromagnetic circuit breaker which our company design and develop by adopting international advanced technology.The circuit breaker consists of shell,operating mechanism,contact arc extinguishing system and hydraulic solenoid tripping device and other parts.The circuit breaker is used in AC50Hz/60Hz,rated voltage DC80V or AC250V equipment network circuit.It is mainly used for a variety of equipment and lines to provide accurate and reliable short circuit and overload protection.
Description
Maximum voltage: 250VAC 50/60 Hz, 80VDC
Current Ratings: 1A to 40A.
Auxiliary switch: SPDT,3A (0.5A) 125/250VAC, 3A 30VDC
Number of poles: 1 pole, 2 poles
Operating environment: -40℃ to +85℃.
Certification: CCC/ UL/ TUV/ CSA
