- ZHEJIANG BSB ELECTRICAL APPLIANCES CO.,LTD

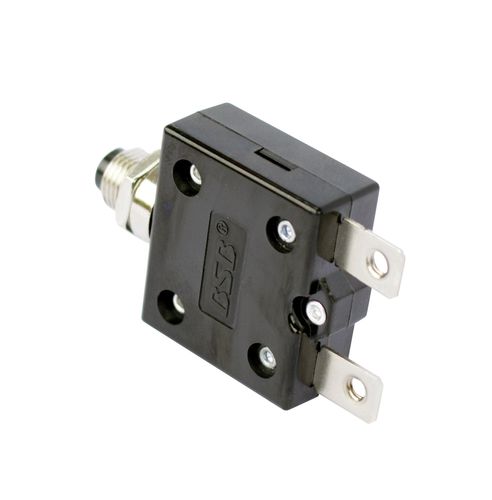

Lever switch BC5 seriessingle-polepanel-mount
Add to favorites
Compare this product
Characteristics
- Type
- lever
- Number of poles
- single-pole
- Other characteristics
- panel-mount
- Primary current
Min.: 3 A
Max.: 50 A
- Voltage
Max.: 250 V
Description
Switch
BC5 Series Supplementary Protector can be used in electric system which rated current from 3A to 50A, 50/60Hz, voltage AC 250V and DC65V to protect the overload and short of circuit. It is largely used in industrial automation equipment, telecommunication equipment, communication power , UPS and so on.
Basic Parameters
Maximum voltage：125/250VAC 50/60 Hz，32/65VDC
Current Ratings：3A-50A
Insulation resistance：Minimum of 100 Megohms at 500VDC
Dielectric strength：1500V, 50/60Hz for one minute between all terminals
Catalogs
BSB/CIRCUIT BREAKER/BC5
2 Pages
